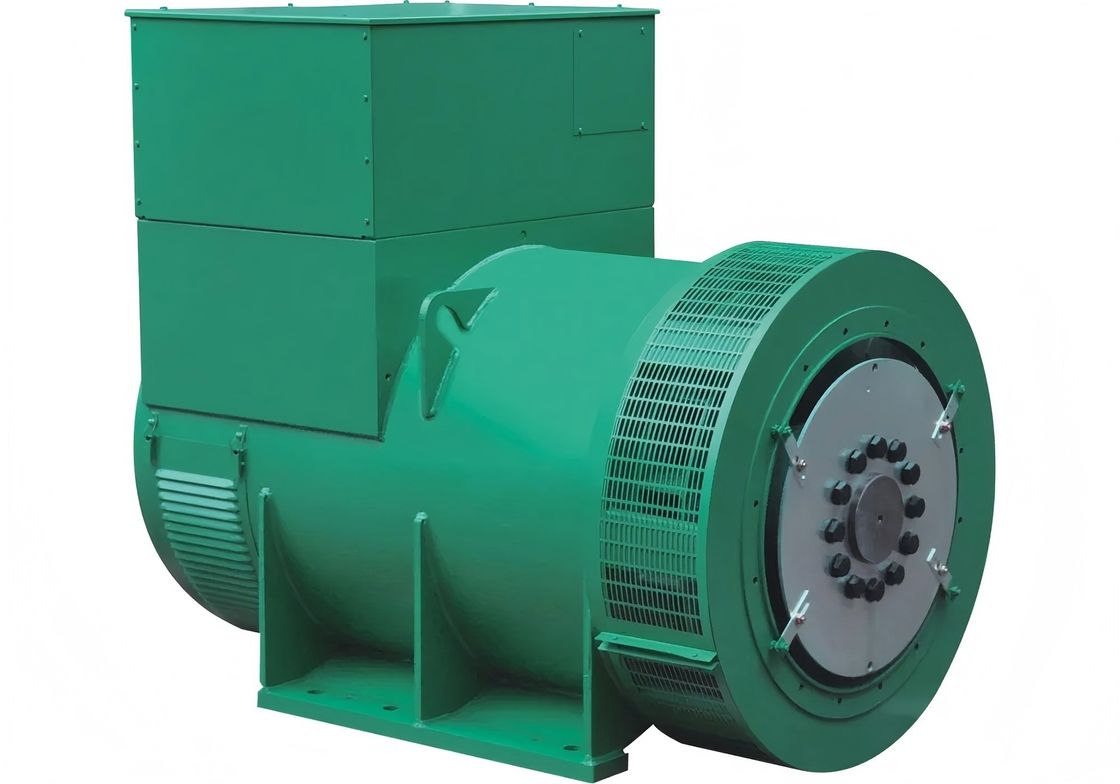

1400-2200KVA 4 Poles Brushless Alternator

WHI7 Series---1400-2200KVA 4 Poles Brushless Alternator

As the best China 1400-2200KVA 4 Poles Brushless supplier,MING JIE provides quality 1400-2200KVA 4 Poles Brushless to global clients

• • ● Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
    ● Single or double bearings are available, options for all kinds of adaptors and coupling disc
    ● 12-end reconnectable winding terminals to get different voltages
    ● Standard “H” insulation class
    ● Convenient installation and maintenance for rotated diodes and adaptor connected bolts
    ● Standard sealed maintenance-free bearings

  Options

  • ● Air filter
    ● Droop CT
    ● PMG excitation system
    ● Winding RTD and bearing RTD
    ● IP23 or IP22 Protection
    ● Anti-condensation heater
    ● Winding protection thermistor and relay
    ● Double bearing transition joint

  • •

    • ALTERNATOR SPECIFICATION

    VOLTAGE		4 POLES			4 POLES
    		50Hz 1500rpm			60Hz 1800rpm
    STAR-SERIES		380	400	415	416	440	480
    STAR-PARALLEL		190	200	208	208	220	240
    TRIANGLE-SERIES		220	230	240	240	254	277
    WHI 7B	RATED CAPACITY (kVA)	1400	1460	1500	1690	1760	1810
    	RATED POWER (kW)	1120	1168	1200	1352	1408	1448
    	EFFICIENCY (％)	95.3	95.2	95.1	95.5	95.4	95.3
    WHI 7C	RATED CAPACITY (kVA)	1550	1615	1660	1890	1970	2025
    	RATED POWER (kW)	1240	1292	1328	1512	1576	1620
    	EFFICIENCY (％)	95.7	95.6	95.5	95.9	95.8	95.6
    WHI 7D	RATED CAPACITY (kVA)	1650	1720	1770	2015	2100	2160
    	RATED POWER (kW)	1320	1376	1416	1612	1680	1728
    	EFFICIENCY (％)	96.3	96.2	96.0	96.3	96.2	96.1
    WHI 7E	RATED CAPACITY (kVA)	1900	1980	2035	2300	2395	2465
    	RATED POWER (kW)	1520	1584	1628	1840	1916	1972
    	EFFICIENCY (％)	96.5	96.1	96.1	96.3	96.3	96.2
    WHI 7F	RATED CAPACITY (kVA)	2080	2170	2250	2600	2705	2785
    	RATED POWER (kW)	1664	1736	1800	2080	2164	2228
    	EFFICIENCY (％)	96.4	96.3	96.2	96.5	96.4	96.3
    WHI 7G	RATED CAPACITY (kVA)	2200	2295	2360	2750	2860	2945
    	RATED POWER (kW)	1760	1836	1888	2200	2288	2356
    	EFFICIENCY (％)	96.0	95.9	95.9	96.1	96.0	95.9

    • The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less

    • than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H

    • class (125℃)
